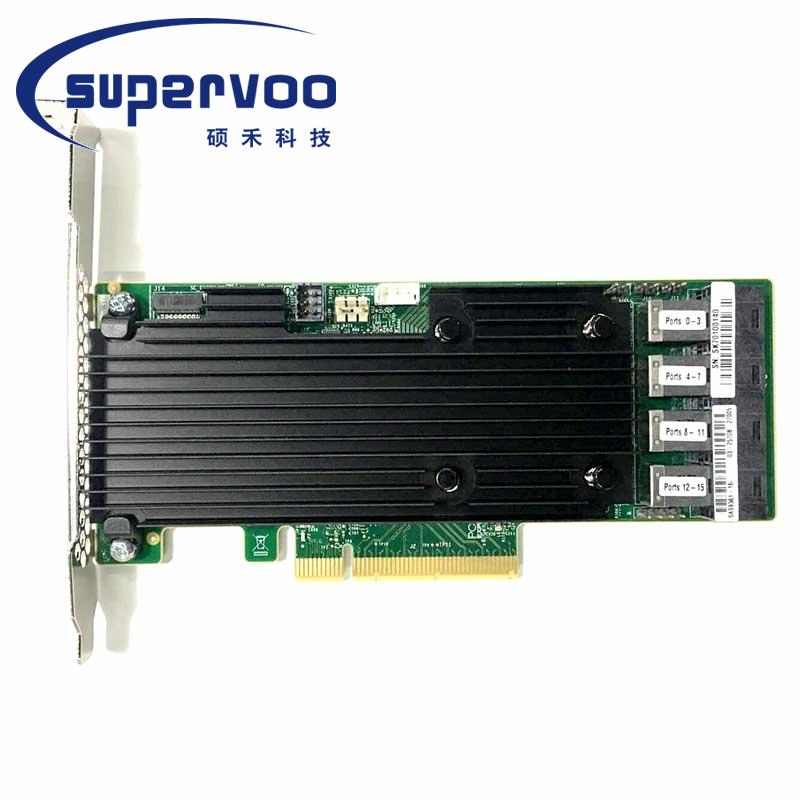

LSI MegaRAID SAS 9361-16i 05-25708-00 12Gb/s 16-Port SAS SATA RAID Controller

Product #：9361-16i
MPN # : 05-25708-00
Product description: LSI MegaRAID SAS 9361-16i 05-25708-00 12Gb/s 16-Port SAS SATA RAID Controller with RAID levels 0, 1, 5, 6, 10, 50, and 60
INQUIRY

Specification	Value
Lifecycle	Active
Distrib. Inventory	No
RAID-on-Chip Controller	SAS3316 dual core RAID on Chip (ROC)
What's in the box	MegaRAID SAS 9361-16i, QIG, LP bracket
Generation	12 Gb/s
RAID Management Software	LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure)
Cache Protection	Optional CacheVault Module (CVPM02)
Physical Dimensions	Low profile 6.127” x 2.712”
Host Bus Type	x8 lane PCI Express® 3.0
Cache Memory	2GB 1866MHz DDR3 SDRAM
Internal Ports	16
Data Transfer Rates	Up to 12Gb/s per port
Devices Supported	Up to 240 SATA and/or SAS devices
Internal Connectors	4 Mini-SAS HD SFF8643
MTBF	> 2,500,000 hours
Operating Temperature	Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (LSICVM02) 55°CMaximum ambient: Controller Card: 60°C (44.5°C with LSIiBBU07)
Operating Voltage (V)	+12V, +3.3V
OS	Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems
Warranty	3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
